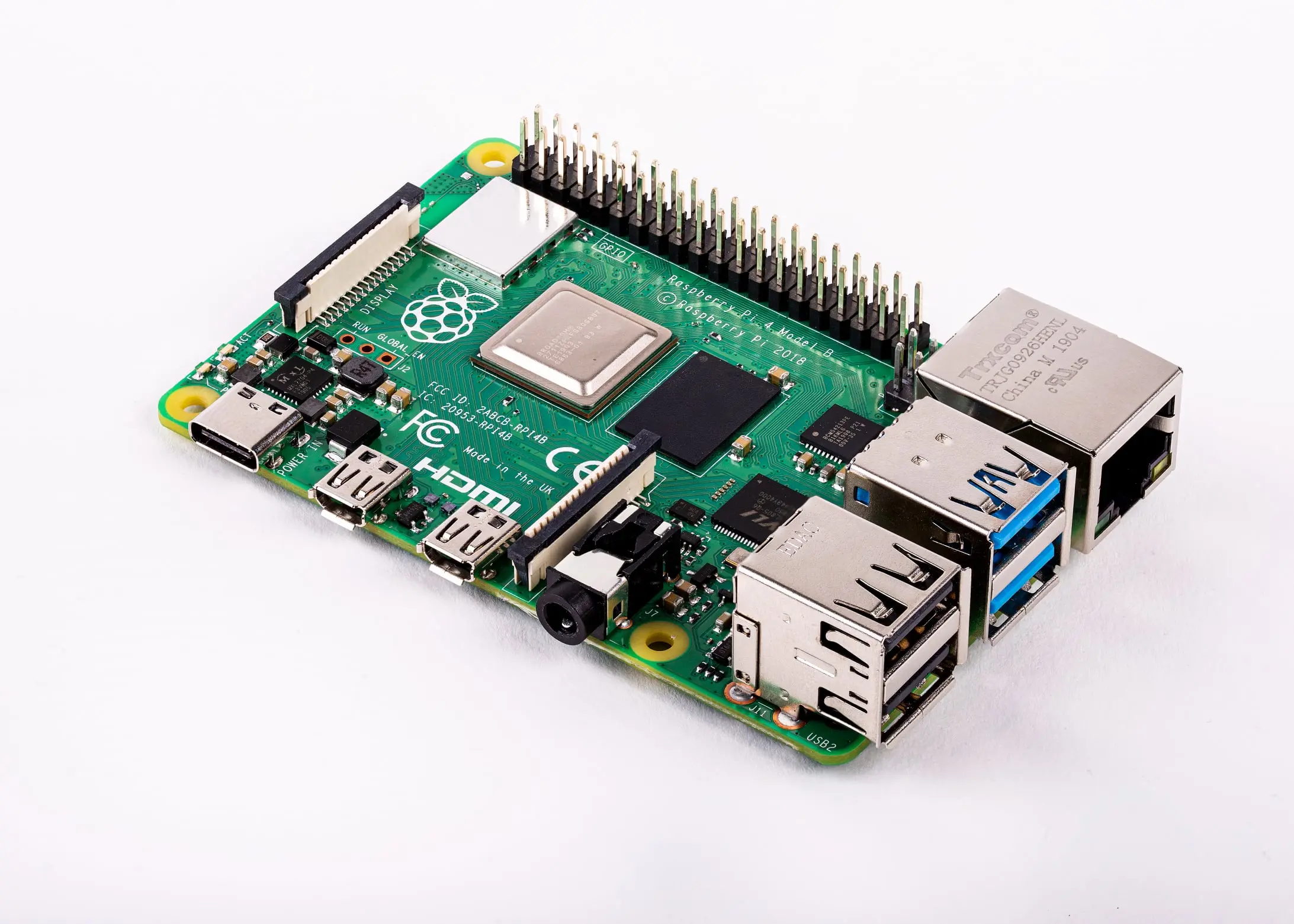

Raspberry Pi 4 Model B #
The Pi bank: four Raspberry Pi 4s used as a development and prototyping workbench for edge, IoT and hardware projects.
Specs #
| Attribute | Value |
|---|---|
| Model | Raspberry Pi 4 Model B |
| Memory | 8GB |
| Storage | microSD card |
| Ethernet | 1x Gigabit |
Selection Rationale #
| Attribute | Value | Rationale |
|---|---|---|
| Model | Pi 4 Model B | Mature platform, broad software support |
| RAM | 8GB | Maximum available, supports heavier workloads |
| Quantity | 4 units | Enables clustering experiments (K3s, etc.) |
| Form factor | Standard Pi | Compatible with cases, HATs, accessories |
In Service #
| Host | Switch port | Notes |
|---|---|---|
dv02rpi001p01 | gi1/0/14, access, VLAN 30 | Also the sdr host:
CaribouLite SDR |
dv02rpi002p01 | gi1/0/3, access, VLAN 30 | |
dv02rpi003p01 | none declared | |
dv02rpi004p01 | gi1/0/5, access, VLAN 30 |
How the bank is used is the Raspberry Pi page and the Pi Lab.
Physical #
- Network: each Pi is on the IoT segment, VLAN 30. Declare a switch port before cabling a Pi: an undeclared port is untagged VLAN 1 and the Pi looks dead ( CHG-0027).
- Power: not documented.
- Console: the image-factory Pi images enable the serial UART (
enable_uart=1).
Firmware #
The bootloader EEPROM version is not recorded. The OS on each Pi is in the Software Catalog.
Evaluation #
| Role | Pi bank |
| Current | Not yet evaluated In service from before the Evaluation policy |
Revisions #
None yet.
