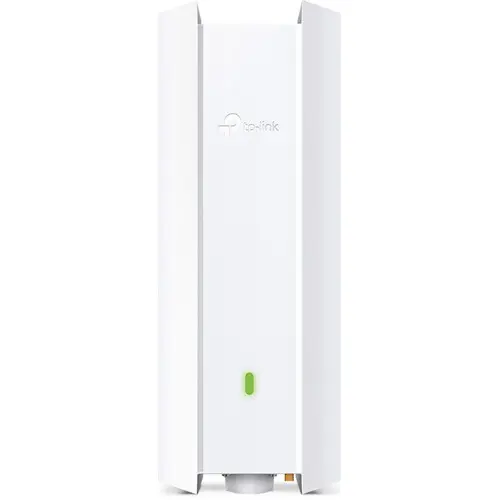

TP-Link Omada EAP650-Outdoor #
A Wi-Fi 6 outdoor access point from TP-Link’s Omada line, used as the mobile site’s access point. It is outdoor-rated, and its rugged build suits the mobile site’s varied deployments.
Specs #
| Attribute | Value |
|---|---|
| Model | TP-Link Omada EAP650-Outdoor, hardware v1.0 (US) |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bands | Dual-band (2.4GHz + 5GHz) |
| Speed | AX3000 (574 + 2402 Mbps) |
| Antennas | 2x2 internal (2.4GHz), 2x2 internal (5GHz) |
| Ethernet | 1x Gigabit RJ45 |
| Power | 802.3at PoE (12.3W typical) |
| Weatherproofing | IP67 |
| Operating Temp | -30°C to 70°C |
| Mounting | Wall/pole mount |
Selection Rationale #
- VLAN capable: Supports VLAN tagging per SSID for network segmentation
- API manageable: Omada controller provides REST API for automation
- Wi-Fi 6: Modern standard with improved efficiency and capacity
- Rugged: IP67 rating handles varied mobile deployment conditions
- Omada ecosystem: Matches the SG2218 switch for unified management
- PoE powered: Single cable for power and data
In Service #
| Host | Role |
|---|---|
dv02wap001p01 | Wireless Access Point |
Physical #
- Network: its one port goes to switch
gi1/0/4, a trunk with native VLAN 99 and VLANs 10, 30, 31, 40 and 45 tagged. - Power: PoE from the injector supplied with the AP, since the switch has no PoE. A stalled boot has been cleared by power-cycling the injector.
- Console: there is none. Recovery is a wired laptop on
gi1/0/2and the reset button, which needs a proper tool rather than a paperclip; see Wireless AP console recovery.
Firmware #
Hardware v1.0 (US). TP-Link’s firmware file labeled V1.6 is the right one for this unit. The running version is in the Software Catalog.
Evaluation #
| Role | Wireless access point |
| Current | Not yet evaluated In service from before the Evaluation policy |
Revisions #
None yet.
